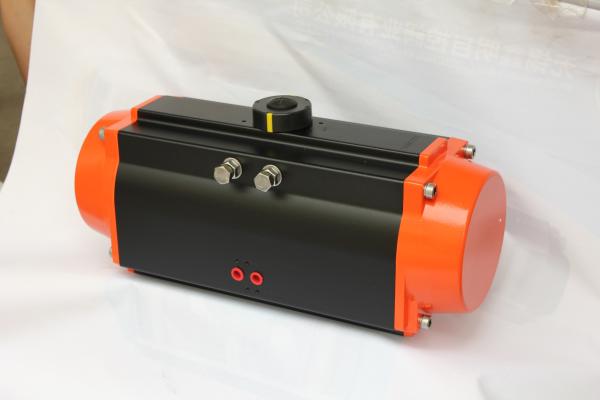

valves pneumatic rotary rack and pinion actuator black body orange caps colour

Ask Lasest Price
Brand Name :	OEM
Model Number :	DA,SR
Certification :	CE,ATEX,ISO,SGS
Payment Terms :	T/T
Supply Ability :	5000 sets per month
Delivery Time :	3-15days

Add to Cart

Product Details
Company Profile

valves pneumatic rotary rack and pinion actuator black body orange caps colour

valves pneumatic rotary rack and pinion actuator black body orange caps colour

Pneumatic actuator

Material	Extruded Aluminum alloy
Rotary Angle	0~90 degree
Structure	rack and pinion rotary actuator
Working Pressure	2~8bar
Surface Treatment	hard anodizing
Working Temperature	Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection	NAMUR, ISO5211 and DIN3337
Application	ball valve, butterfly valve, and rotary machine
Cup Color	grey, black, sky blue, dark blue, red, orange

Main Features

Pneumatic rotary actuator are greatly used in ball valve and butterfly valve.

Low cost, compact design, long working life.

Pneumatic actuator type: single acting (spring return) or double acting.

Color: orange, blue, black, dark gray. we accept OEM colors and brand.

Pneumatic actuator working pressure: 0.3~0.8MPa

Bottom connection: ISO 5211

Solenoid valve standard: Namur

Accessories of pneumatic actuator: limit switch box, solenoid valve, positioner.

Pneumatic Actuator Dimension

valves pneumatic rotary rack and pinion actuator black body orange caps colour

Model

H×I

Air connection

XMO32

110

50×25

Æ36

M5×7.5

G1/8"

XM040

122

80×30

Æ50

Æ36

M6×10

M5×7.5

NAMUR G1/4"

XM052

147

80×30

Æ50

Æ36

M6×10

M5×7.5

NAMUR G1/4"

XM063

172

80×30

Æ70

Æ50

M8×13

M6×10

NAMUR G1/4"

XM075

184

100

80×30

Æ70

Æ50

M8×13

M6×10

NAMUR G1/4"

XM083

204

109

103

80×30

Æ70

Æ50

M8×13

M6×10

NAMUR G1/4"

XM092

262

117

109

80×30

Æ70

Æ50

M8×13

M6×10

NAMUR G1/4"

XM105

268

133

121

80×30

Æ102

Æ70

M10×16

M8×13

NAMUR G1/4"

XM125

301

155

143

80×30

Æ102

Æ70

M10×16

M8×13

NAMUR G1/4"

XM140

394

173

152

80×30

Æ125

Æ102

M12×20

M10×16

NAMUR G1/4"

XM160

458

198

174

80×30

Æ125

Æ102

M12×20

M10×16

NAMUR G1/4"

XM190

528

232

206

130×30

Æ140

M16×24

NAMUR G1/4"

XM210

532

257

226

130×30

Æ140

M16×24

NAMUR G1/4"

XM240

660

291

260

130×30

Æ165

M20×25

NAMUR G1/4"

XM270

740

330

294

130×30

Æ165

M20×25

NAMUR G1/2"

XM300

798

354

336

130×30

Æ165

M20×25

NAMUR G1/2"

XM350

880

408

385

130×30

Æ165

M20×25

NAMUR G1/2"

XM400

950

464

516

130×30

Æ254

Æ165

8-M16×25

M20×25

NAMUR G1/2"
