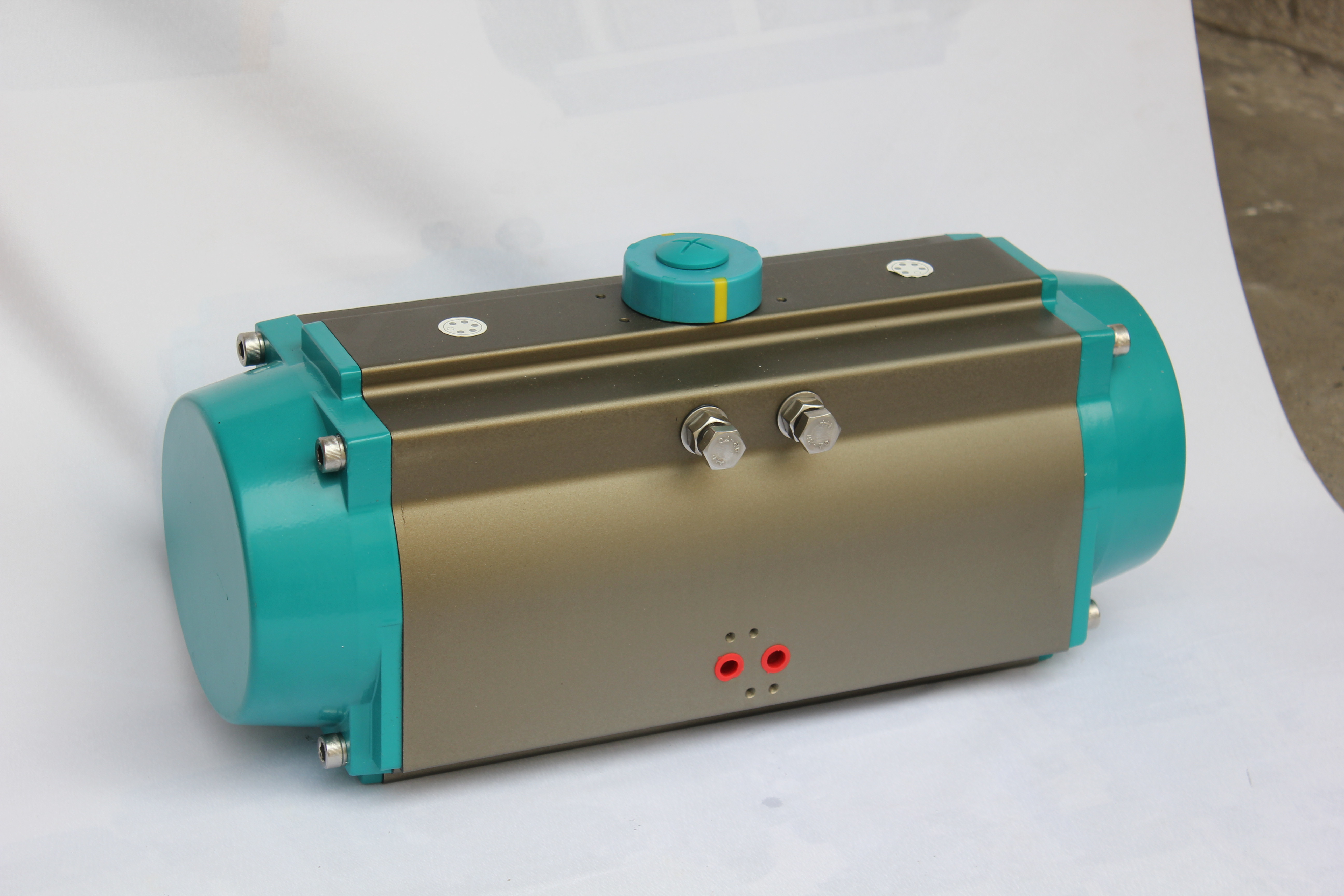

Rack and Pinion Pneumatic Actuator 5021 Colour Long Use Life Actuator

Ask Lasest Price
Brand Name :	xm
Model Number :	DA,SR
Certification :	CE,ATEX,ISO,SGS
Payment Terms :	T/T
Supply Ability :	5000 sets per month
Delivery Time :	3-15days

Add to Cart

Product Details
Company Profile

Rack and Pinion Pneumatic Actuator 5021 Colour Long Use Life Actuator

Pneumatic Actuator

Material	Extruded Aluminum alloy
Rotary Angle	0~90 degree
Structure	rack and pinion rotary actuator
Working Pressure	2~8bar
Surface Treatment	hard anodizing
Working Temperature	Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection	NAMUR, ISO5211 and DIN3337
Application	ball valve, butterfly valve, and rotary machine
Cup Color	grey, black, sky blue, dark blue, red, orange

Rack and Pinion Pneumatic Actuator 5021 Colour Long Use Life Actuator

Main Features

-1). Our design, material and size are definitely accord with ISO9001:2008, CE Certificate and ATEX Certificate.
-2). Our piston is treated thermal quenching to obtain better strength and prolong using life.
-3). The surface of our actuator body is treated hard anoidizing to against rust and scratch.

-4). We provide with OEM service

-5). Strict quality control
-6). Better quality at a better price
-7). Excellent After-service.
-8). Fast delivery time
